Description of crusher machine for wood
Crusher machine for wood is a type mechanical equipment used to produce wood power. Wood crusher can make the raw materials such as wood, fork etc into sawdust in one process. The advantages of the wood crusher are less investment, low energy consumption and high productivity, good economic returns, convenient usage and maintenance, etc.
Our crusher machine is new style and multipurpose machine, it can be crushing 10 mm ~ 30 mm (Diameter / Thickness) biomass materials, after crushing, the finally powder can reach to 1mm ~ 8mm ( adjustable ), needn't to use any other equipments.
Technical parameter of crusher for wood
Type | JX500 | JX600 | JX700 | JX900 | JX1000 | |
Blades quantity(pcs) | 4 | 4 | 4 | 6 | 8 | 8 |
Size of inlet(mm) | 170*150 | 220*170 | 230*190 | 230*210 | 280*250 | 290*260 |
Dia of cutter (mm) | 420 | 500 | 600 | 600 | 830 | 830 |
Size of blade(mm) | 90*60*8 | 120*70*8 | 150*70*10 | 150*100*10 | 150*100*10 | 150*100*10 |
Screen(pcs) | 1(3mm-8mm) | 1(3mm-8mm) | 1(3mm-8mm) | 1(3mm-8mm) | 1(3mm-8mm) | 1(3mm-8mm) |
Hammer(pcs) | 12 | 12 | 12 | 15 | 15 | 30 |
Capacity(t/h) | 1 | 1.2 | 2 | 2.5 | 3 | 4.5 |
Main rotor speed(r/min) | 600 | 600 | 550 | 550 | 600 | 600 |
Power (kw) | 7.5 | 15 | 22 | 37 | 55 | 75 |
Net weight | 244kg | 450kg | 490kg | 690kg | 1095kg | 1350 |
Gross weight(wooden crates) | 260kg | 470kg | 515kg | 715kg | 1130kg | 1390kg |
Size (mm) | 1200*550*750 | 1500*640*820 | 1500*700*900 | 1900*820*1050 | 2100*1100*1250 | 2200*1870*1500 |
Package size(mm) | 1300*650*850 | 1600*700*1000 | 1600*800*1000 | 2000*920*1150 | 2200*1200*1350 | 2300*1970*1600 |

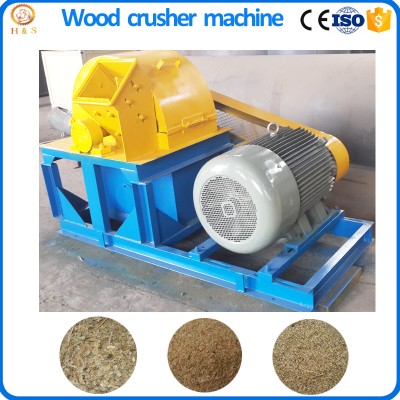

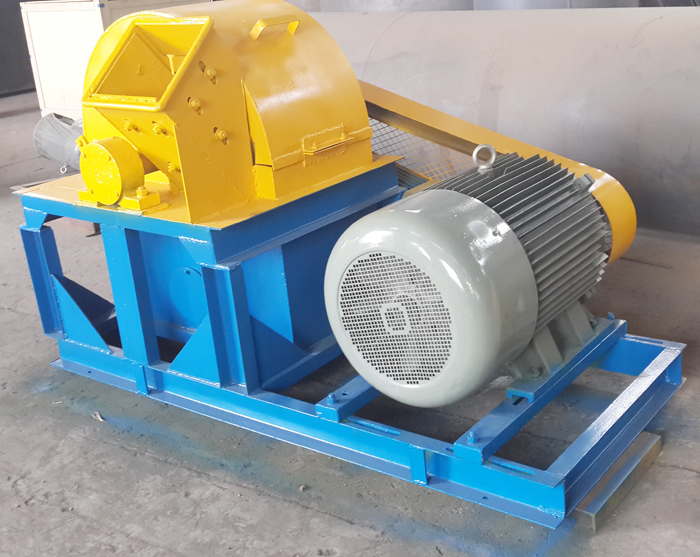

Pictures of crusher for wood
